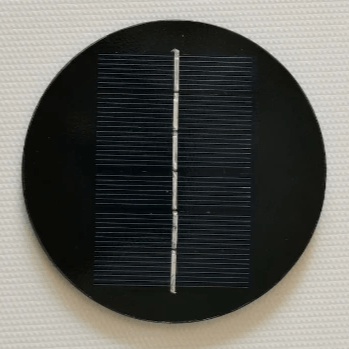

Round Tempered Glass polycrystalline solar panel

Solar Modules Features:

High-efficiency mono crystalline silicon solar cells, more power in peak hours through cells.

Durable and tough TPT and EVA.

3.2 mm high transmission low-iron, tempered glass, unique esthetic appearance of solar cells.

25 Years limited power warranty, Certificate: CE

Solar Modules Applications:

Big PV modules are designed for solar grid-to systems up to 1000VDC, solar complete systems for batteries charging, solar street lights, solar traffic lights, solar garden lights, solar billboard lights and solar car charging systems , etc.

Small solar modules are designed for solar lawn lights, solar torches, solar chargers, solar toys and other solar electronic products , etc.

Electrical Parameters at Standard Test Conditions

Max Power                Pmax            0.6W

Max Power Voltage         Vmp          3V

Max Power Current         Imp           0.22A

Open Circuit Voltage        Voc           4.2V

Shot Circuit Current         Isc            0.25A

Module Efficiency                            18.5%

Number of Cell in Series                    6

Max Power Tolerance                      ±3%

Maximum system voltage                     1000V DC

Thermal Characteristics

Temperature coefficient of Pmax      -0.38%/℃

Temperature coefficient of Voc       -60.5mV/℃

Temperature coefficient of Isc         2.2mA/℃

General Characteristics

Dimensions          φ100*5mm

Weight                   98g

STC: Irradiance 1000W/ m2, Temperature 25℃,  AM=1.5
