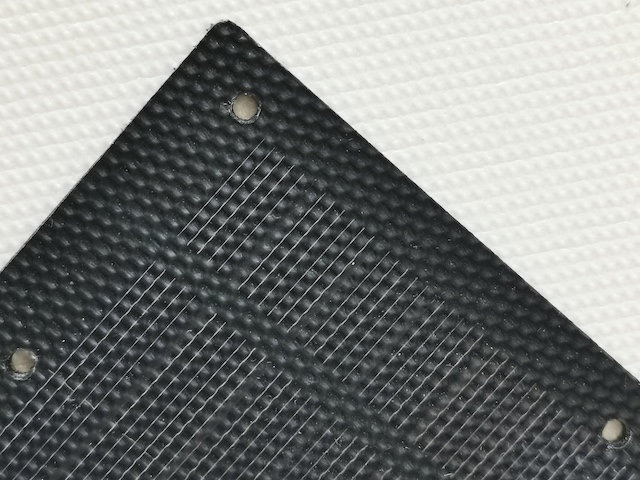

ETFE laminated monocrystalline solar panel
2.Imported ETFE film
4.Ideal for mobile phone, and mobile phone chargers, small power consumption electronics, and electronic gifts
3.Suitable for both lithium battery and Ni-MH battery connectivity
ETEF laminated mono crystalline solar panel
1.High efficiency monocrystalline solar cells.
2.Imported ETFE film
4.Ideal for mobile phone, and mobile phone chargers, small power consumption electronics, and electronic gifts
3.Suitable for both lithium battery and Ni-MH battery connectivity
Item No. | 100x80mm-9V/140mA |
Optimum Operating Voltage (Vmp) | 9V |
Optimum Operating Current (Imp) | 0.14A |
Open Circuit Voltage (Voc) | 10.6V |
Short Circuit Current (Isc) | 0.15A |
Maximum Power at STC (Pmax) | 1.26W |
Cell Efficiency | 19.6% |
Operating Module Temperature | -20 °C to +60 °C |
Maximum System Voltage | 1000 V DC (IEC) / 600V DC (UL) |
Maximum Series Fuse Rating | 15 A |
Power Tolerance | 0/+5 % |
STC: lrradiance 1000 W/m2, module temperature 25 °C, AM=1.5;
Best in Class AAA solar simulator (IEC 60904-9) used, power measurement uncertainty is within +/-3%
Mechanical Characteristics
Solar Cell | Mono-crystalline silicon solar cell |
No. of Cells | 18pcs |
Dimensions | 100x80mm |
Weight | 38g |
Imported from Japan, the ETFE has a better transparency than the normal PET so that keeps the solar blanket higher output in the same light condition. The ETFE also keep the solar blanket more than 8 years life time
